Pre-Order Item:

This item is part of Batch #1.
Estimated shipping: May 2026.

Pre-orders close March 11, 2026.

Once parts arrive at Boxy Pixel and pass quality inspection, orders will begin shipping in the order they were received.

Overview

The iPod Classic 5th, 6th, and 7th Gen is still the go-to choice for anyone who loves a dedicated music player. Our original “boxy” housings started it all, and now the 2026 MKII revision takes things further with updated housings and refined electronics. An iPod housing made for those that like to Tinker.

We offer two sizes to fit different build kits. This is the MIN housing set — designed for those who want the smallest, cleanest package possible.  This requires using an iflash quad, iflash uDUAL, or any hard drive adapter that uses a micro SD card.

If you prefer, see our MAX kit for more space for mods. If you need to purchase additional items individually, you can click on the product title in the kit. Some items are optional - select the items you need.

Features

• Revised Electronics Integration: We’ve updated the internal electronics with TTRS headphone support, Bluetooth 5.0, reverse polarity protection and more.  See the electronics page for more details.
• Enhanced Tactility:  We now offer two different center buttons depending on your iPod - one center button for 5th gen iPods, and another for 6/7
• We have three battery connection options on the electronics board:

1. 1. 1. Conventional iPod type connector
      2. New JST (ACH series) connector type (for our custom 1250 mah battery)
      3. Positive and Negative solder points - for hardwiring your own lithium battery

• Antenna option for better Bluetooth range

MKII Technical Specifications

• Material: Aerospace-grade CNC machined aluminum/brass.
• Compatibility: Precision-fit for iPod Classic 5th (Video), 6th, and 7th Gen internals.
• Finish: Available in our signature anodized and raw brass finishes.
• Design: Engineered in Ann Arbor, MI, with a focus on long-term durability
• Type C: For charge ONLY, however we did add solder points on our board if you choose to solder data lines to the ipod 30 pin connector
• MKII (MIN) dimensions: 103.5mm x 64mm x 17.5mm x 12.5mm

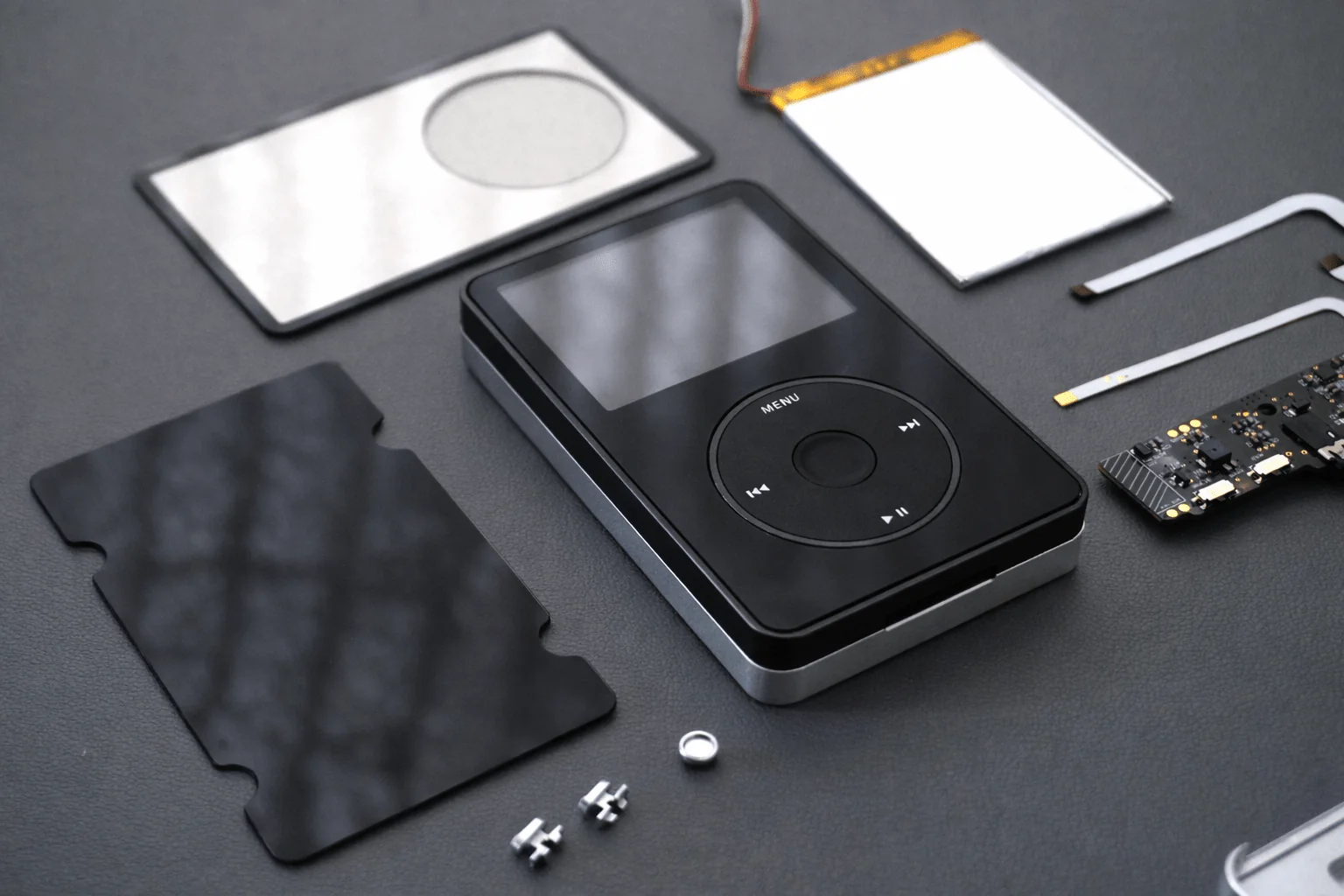

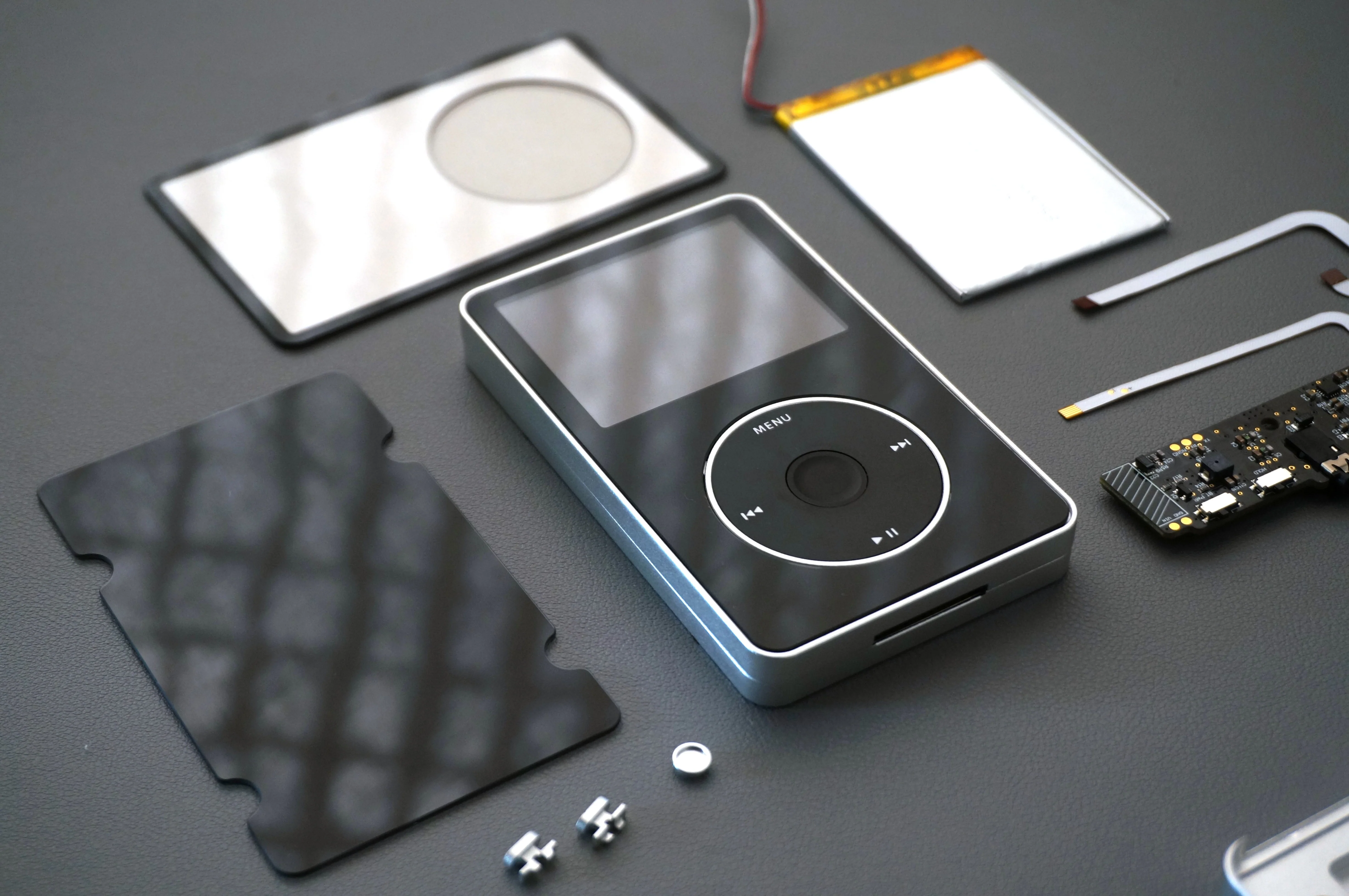

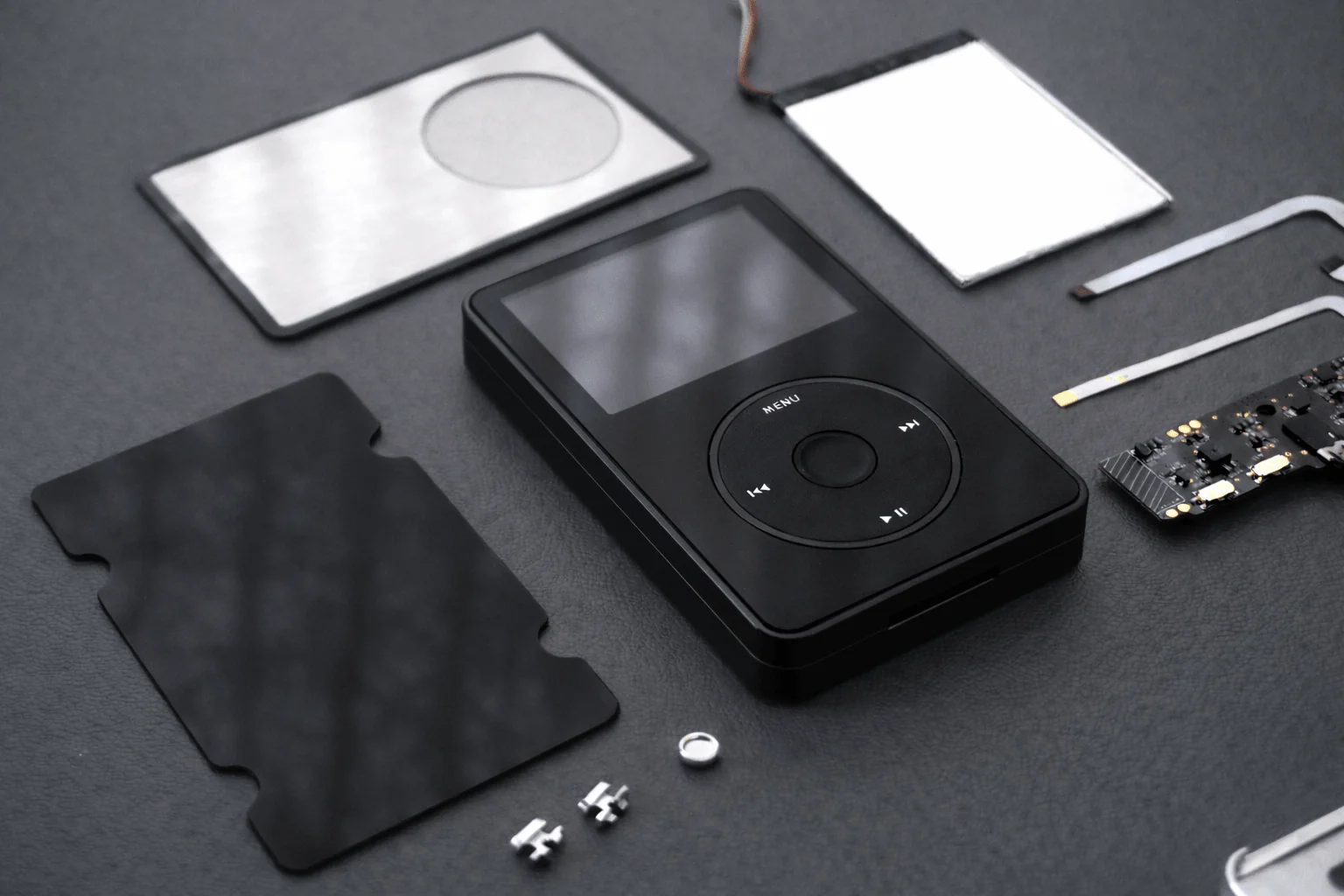

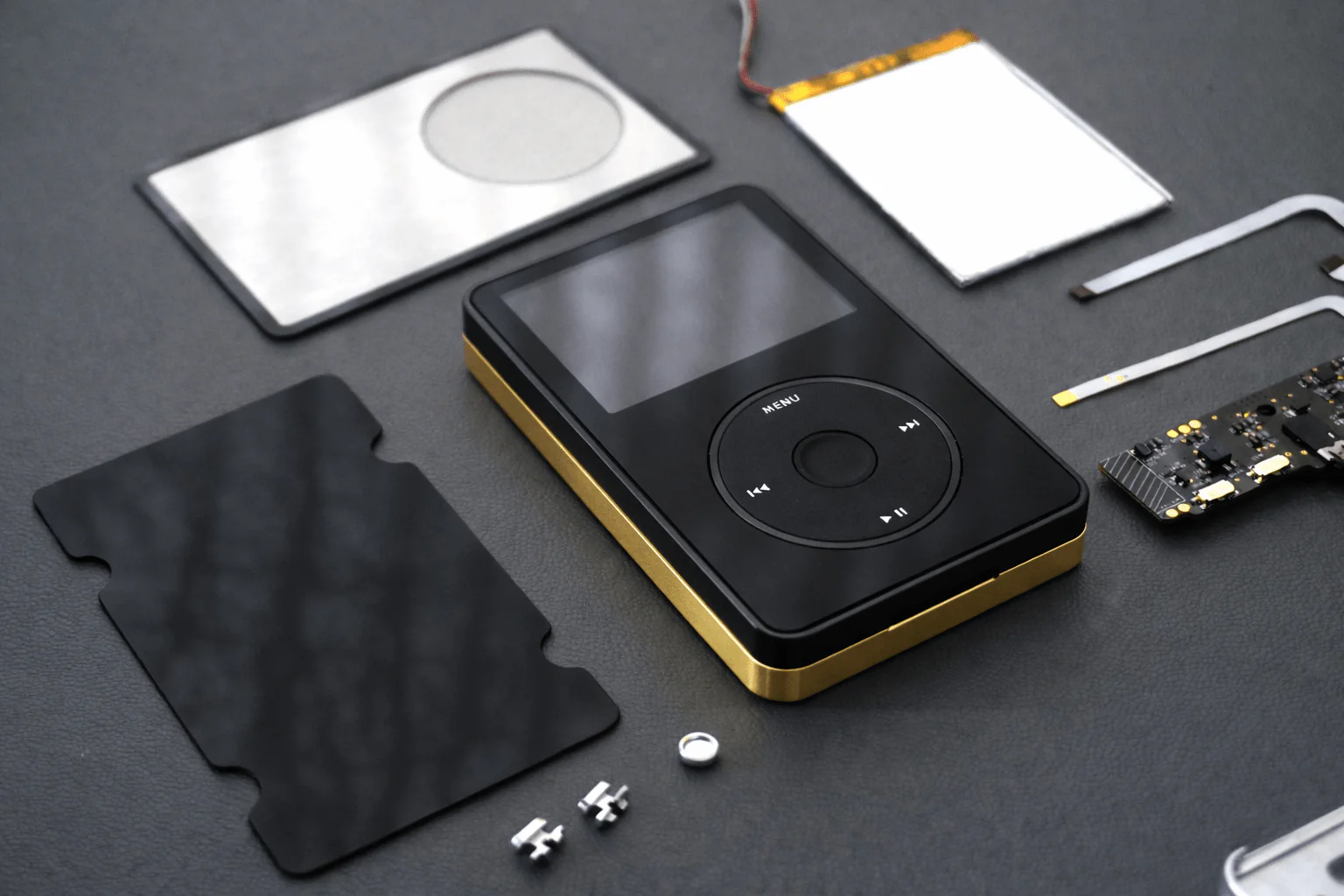

Includes

• (1) MKII CNC Machined Front Housing (2026 Revised Profile).  This front is compatible with both our MIN and MAX sized rear housing options if you ever decide to change to different size.
• (1) MKII MIN Rear Housing  - you'll need to use an iflash quad for your hard drive
• Electronics board and flex cables
• MKII Front Inlay
• MKII Rear Inlay
• MKII Button set
• Battery
• All necessary fasteners and hardware for assembly

Notes

• Please do not order this if you are outside the continental USA.  We cannot ship batteries to you and will need to cancel your order.  I have created another Base kit if you are outside of the continental US.
• You may need to trim your iflash slightly. Instructions will be posted in our assembly page.
• This requires using an iflash quad, iflash uDUAL, or any hard drive adapter that uses a micro SD card.
• The battery level indicator will not work properly with this mod.  I am working on ways to possibly add a separate indicator later this year
• The bluetooth board will not connect with all headphones.  I have begun to compile a list of headphones that work, see here.
• Please refer to each individual item for more info, specifications, and warnings
