Upgrade your Game Boy Advance SP console with the V5 3" 3.0 inch HD Drop-In All-in-1 Laminated 720*480 Retro Pixel IPS display backlight. This display offers optional soldering for brightness control and is compatible with both our metal unhinged and conventional metal hinged shells. Note: You may need to adjust the copper tape touch sensor toward the LCD for optimal fit.

Includes

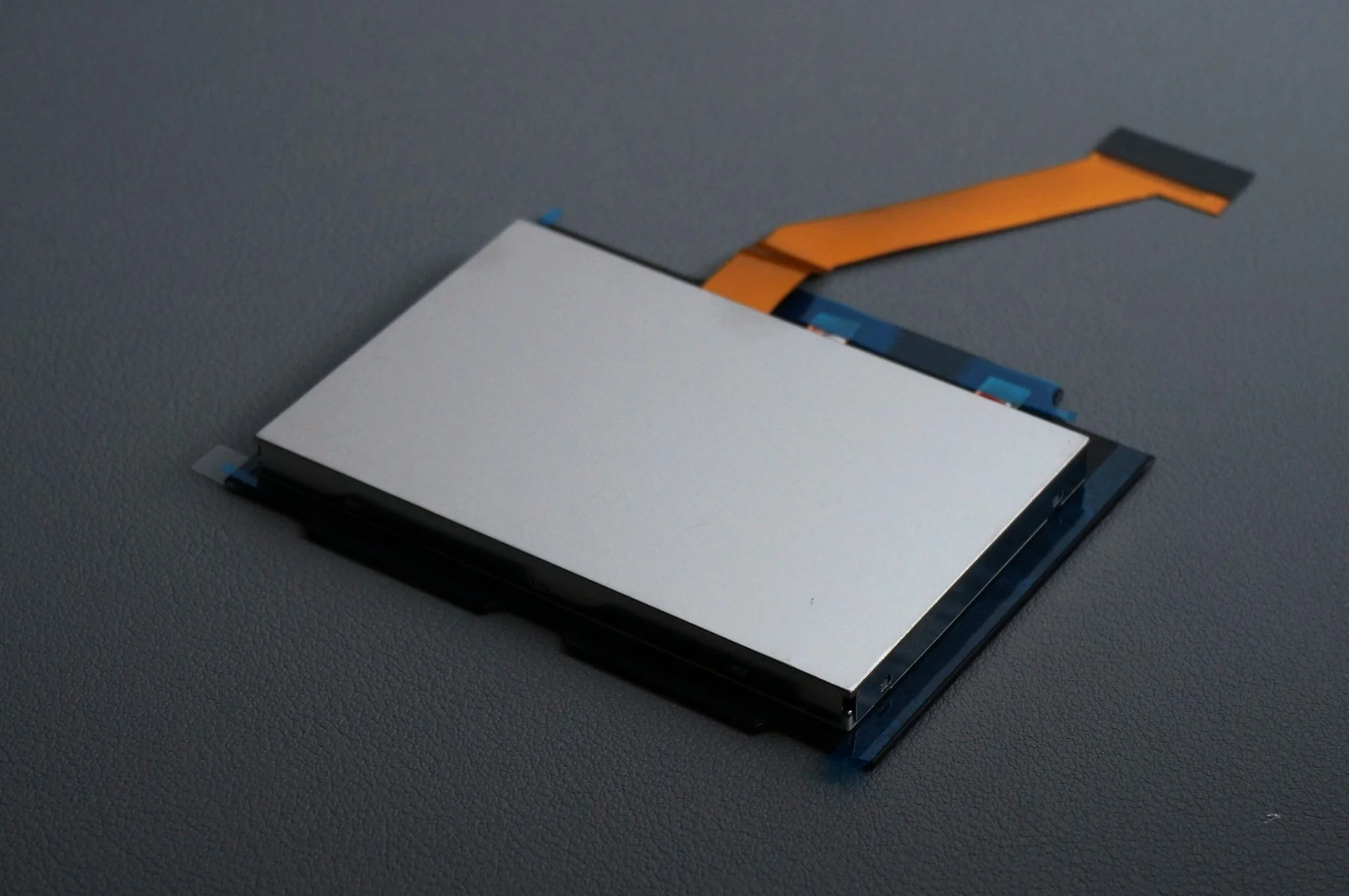

• 1x V5 3" 3.0 inch HD Drop-In All-in-1 Laminated 720*480 Retro Pixel IPS display

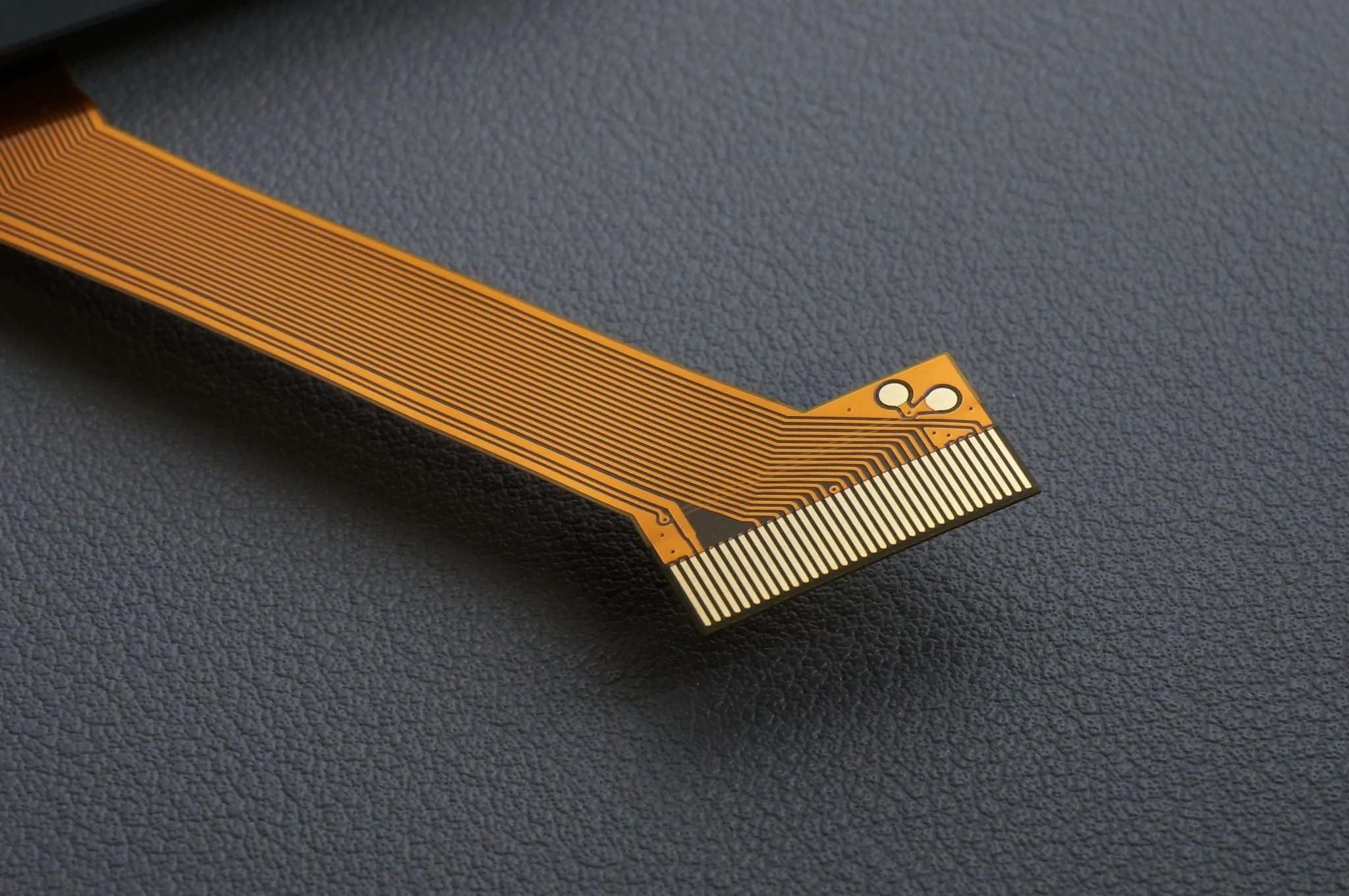

• Flex cable

Features

• 3.0 inch HD IPS display with 720*480 resolution, same size as OEM
• 15 brightness levels, adjustable via optional soldering
• Pixel effects: Normal, retro pixel, scan line 1, scan line 2
• 8 color modes for customizable display aesthetics
• Touch screen for easy adjustment of brightness and color modes
• On-screen display (OSD) functionality (requires soldering one wire from flex to Q128 on your Nintendo PCB) for menu operation:
  • Short press 'Brightness' button to change brightness
  • Press 'Brightness' button for 5 seconds to activate OSD Menu
  • Long press button to select adjustment item in OSD Menu
  • Short press button to adjust selected item in OSD Menu

Warnings

• Test the screen and flex cable before assembly into the housing; returns cannot be accepted after installation
• Connect to your Nintendo board and use a stock battery to perform initial testing
• Ensure compatibility and proper installation procedures to avoid damage to components
